Development of Special Service Tools Tracker Kingpin Hino Series 300 to Increase Technician Work Efficiency

Authors

  • Adhe Satria Universitas Negeri Yogyakarta
  • Yoga Guntur Sampurno Universitas Negeri Yogyakarta

DOI:

https://doi.org/10.21831/jamat.v2i1.1423

Keywords:

Tracker kingpin, Special service tools, Finite element analysis, Hino series

Abstract

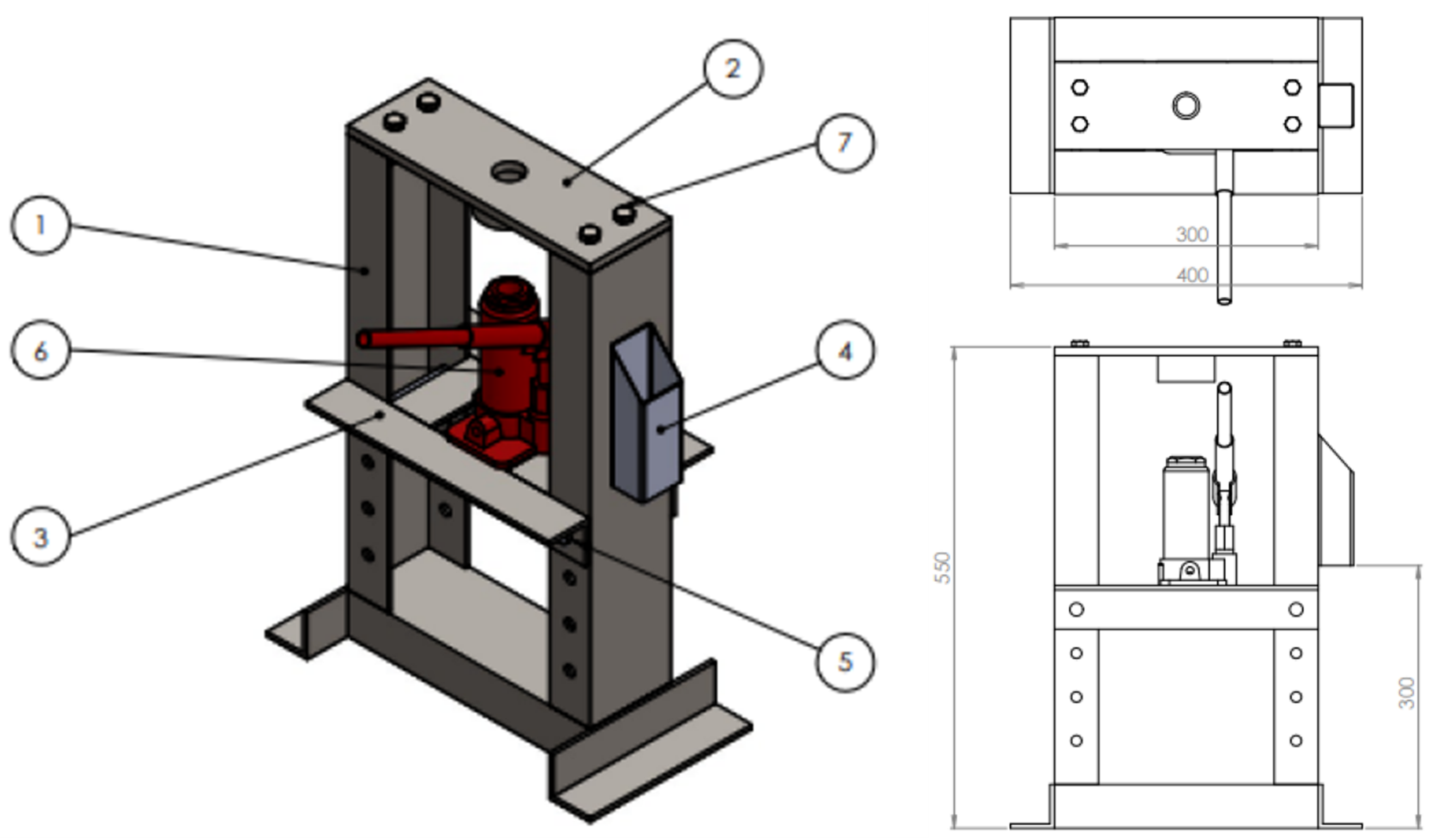

This study focused on the design, development, and evaluation of a Special Service Tool (SST) created explicitly for maintaining kingpin components in Hino Series 300 trucks. The research focused on the challenges and safety issues encountered by technicians stemming from the lack of specialized tools for kingpin removal. This often led to extended service times, variable repair quality, and a heightened risk of damaging components. To address these challenges, the research employed the ADDIE development model, which comprises five stages: Analysis, Design, Development, Implementation, and Evaluation. In the design phase, 3D modeling was performed using SolidWorks, and Finite Element Analysis (FEA) was conducted to verify the tool's structural integrity under various load scenarios, reaching up to 19,613 N. The SST was made from ASTM A36 steel, recognized for its mechanical strength and ease of manufacturing. The simulation results demonstrated that the structure stayed within safe limits for both stress and deformation, achieving a minimum safety factor of 1.1. The implementation took place at PT. MPM Hino Yogyakarta, where field testing showed a significant enhancement in technician efficiency. The SST cut down kingpin maintenance time from 360 minutes to only 42.08 minutes, achieving an impressive 88.3% reduction in time spent. Testing for effectiveness, based on feedback from technicians and supervisors, revealed a high level of user satisfaction, particularly in terms of safety, usability, and ergonomic design. The SST tracker kingpin provides a dependable, effective, and secure option for maintaining commercial vehicles. The successful application of it at a Hino service center highlights its practical benefits and the potential for wider implementation throughout the automotive maintenance sector. Additional improvements could involve ergonomic adjustments and the ability to accommodate various truck models, thereby facilitating broader use.

Downloads

Download data is not yet available.

References

[1] D. Carracedo and H. Mostofi, "Electric cargo bikes in urban areas: A new mobility option for private transportation," Transportation Research Interdisciplinary Perspectives, vol. 16, p. 100705, 2022.

[2] B. Zwolińska and J. Wiercioch, "Modelling the Reliability of Logistics Flows in a Complex Production System," Energies, vol. 16, no. 24, p. 8071, 2023.

[3] D. A. Hensher and E. Wei, "Energy and environmental costs in transitioning to zero and low emission trucks for the Australian truck Fleet: An industry perspective," Transportation Research Part A: Policy and Practice, vol. 185, p. 104108, 2024.

[4] D. Nagaraju, "Fundamentals and Challenges of Conventional Road Transportation," in The Future of Road Transportation: CRC Press, 2023, pp. 1-28.

[5] J. Käsgen, J.-P. Kobler, and R. Möller, "Kingpin load measurement of a semi-trailer," 2022: Springer, pp. 226-245.

[6] G. Xu, W. He, F. Chen, H. Shen, and X. Li, "One-dimension orientation method of caster and kingpin inclination of vehicle wheel alignment," Measurement, vol. 198, p. 111371, 2022.

[7] S. C. Nwanya, J. I. Udofia, and O. O. Ajayi, "Optimization of machine downtime in the plastic manufacturing," Cogent Engineering, vol. 4, no. 1, p. 1335444, 2017.

[8] J. K. Patel, "The importance of equipment maintenance forecasting," Int. J. Mech. Eng, vol. 8, no. 5, pp. 7-11, 2021.

[9] V. Dobromirov, V. Verkhorubov, and I. Chernyaev, "Systematizing the factors that determine ways of developing the vehicle maintenance system and providing vehicle safety," Transportation research procedia, vol. 36, pp. 114-121, 2018.

[10] A. M. Titu, D. Grecu, A. B. Pop, and I. R. Șugar, "Service Process Modeling in Practice: A Case Study in an Automotive Repair Service Provider," Applied Sciences, vol. 15, no. 8, p. 4171, 2025.

[11] R. Srivastava, M. Awojobi, and J. Amann, "Training the Workforce for High-Performance Buildings: Enhancing Skills for Operations and Maintenance," American Council for an Energy-Efficient Economy, Washington, DC, 2020.

[12] D. Raabe, "The materials science behind sustainable metals and alloys," Chemical reviews, vol. 123, no. 5, pp. 2436-2608, 2023.

[13] M. A. Maleque and M. S. Salit, Materials selection and design. Springer, 2013.

Downloads

Published

06/30/2025

How to Cite

[1]
A. Satria and Yoga Guntur Sampurno, “Development of Special Service Tools Tracker Kingpin Hino Series 300 to Increase Technician Work Efficiency”, JAMAT, vol. 2, no. 1, pp. 111–123, Jun. 2025.
